Maxgear

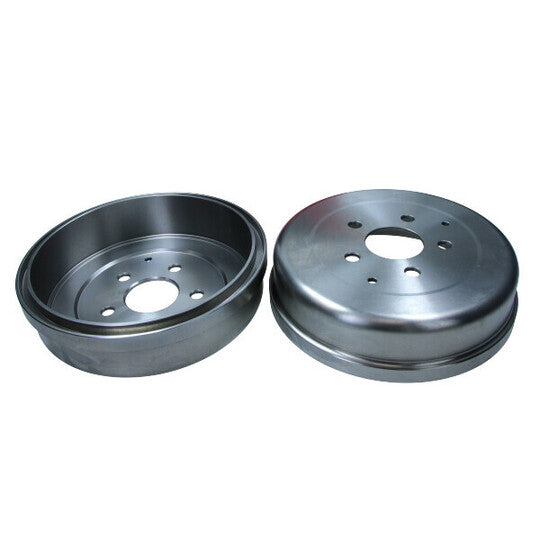

19-3709 Brake Drum
SKU / part number
Maxgear 19-3709 Brake Drum. Part no. 19-3709. Check specifications, vehicle fitment and references below.
Specifications
Fitting Position
Rear Axle
Supplementary Article/Supplementary Info 2
without wheel bearing
Supplementary Article/Supplementary Info 2
without wheel hub
Supplementary Article/Supplementary Info 2
without wheel studs
Bolt Hole Circle Ø
112 mm
Total brake drum height
78 mm
Inner brake drum height
64 mm
Inner brake drum diameter
252 mm
Outer brake drum diameter
286 mm
Number of Holes
5
max. brake drum reboring dimension
253.5 mm
Shipping details
Weight
6.903 Kg
Customs Code
870830
Country of Origin
China
OE Numbers
| AUDI | 251609615 |
|---|---|
| SEAT | 251609615 |
| SKODA | 251609615 |
| VW | 251609615 |
Cross-Reference Numbers
| A.B.S. | 7170S |
|---|---|
| APEC | DRM9700 |
| ATE | 24.0225-2002.2, 24022520022, 480046 |
| AUDI | 251609615 |
| AUGROS | 5293879P |
| BENDIX | 329131B |
| BENDIX Braking | BDM1008 |
| BORG & BECK | BBR7047 |
| BOSCH | 0 986 477 033, 0986477033, DB109 |
| BRECO | BT5495 |
| BREMBO | 14549510 |
| Brake ENGINEERING | DR960230 |
| DELPHI | BF184 |
| EUROBRAKE | 5825264706 |
| FEBI BILSTEIN | 14062 |
| FERODO | FDR329131 |
| FREMAX | BD1513 |
| FTE | BT242 |
| HELLA PAGID | 355301641, 8DT355301641 |
| JURID | 329131J, 8282007170 |
| MAPCO | 35771 |
| METZGER AUTOTEILE | BT725 |
| MEYLE | 115 523 1011, 1155231011 |
| MGA | T7519 |
| MINTEX | MBD296 |
| NK | 264706 |
| OBTEC A/S | 825428697 |
| PAGID | 63906 |
| QUINTON HAZELL | BDR242 |
| REMSA | 711100 |
| ROADHOUSE | 711100 |
| SEAT | 251609615 |
| SEBRO | 7170 |
| SKODA | 251609615 |
| STELLOX | 60264706SX |
| TEXTAR | 94008300, 94048300 |
| TRISCAN | 812029209 |
| TRW | DB4053 |
| VW | 251609615 |
| WOKING | B711100 |
| ZIMMERMANN | 600195200, 600195220 |
| sbs | 1825264706 |
