Meyle

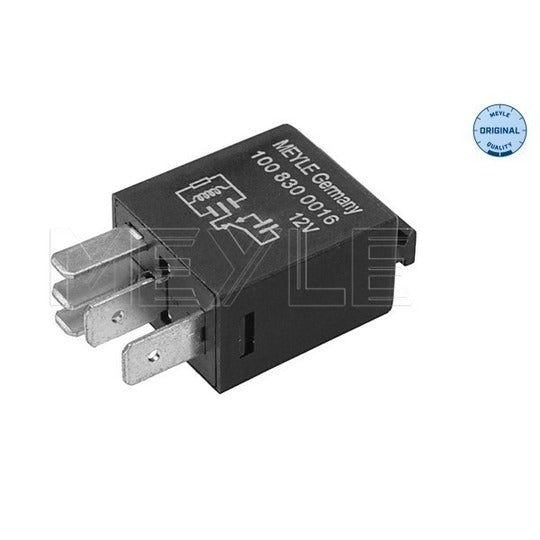

100 830 0016 Multifunctional Relay
SKU / part number
Meyle 100 830 0016 Multifunctional Relay. Part no. 100-830-0016. Check specifications, vehicle fitment and references below.
Specifications
Height
26 | mm
Length
23 | mm
Width
15 | mm
Operating voltage
12 V
Rated current
10 A
Rated current
30 A
Relay function
Electric booster heater
Relay function
Normally open contact
Relay function
Fuel Filler Cap
Relay function
Trumpet Horns
Relay function
Seat Heating
Relay function
Indicator
Relay function
Daytime Running Light
Relay function
Air Conditioning
Relay function
Parking Heater
Relay function
Central Locking
Relay function
Window Regulator
Relay function
Trailer stop light
Relay function
Washer Fluid Pump, windscreen
Relay function
Heatable exterior mirror
Relay function
Terminal 50
Relay function
Water pump after-run
Relay function
Roof ventilation
Relay function
Terminal 61
Relay function
Auxiliary Water Pump
Relay function
Fan, engine cooling
Relay function
Washer Fluid Pump, headlight cleaning
Relay function
Hinged Window
Relay function
Exterior Rearview Mirror Adjustment
Switch Function
Changeover Contact
Temperature range from
-40 °C
Temperature range to
120 °C
Resistor
560 Ohm
Connector type
2x 6,3 mm
Connector type
3x 4,8 mm
Number of pins
5
Trade Numbers
MEX0198
Shipping details
Weight
0.025 Kg
Customs Code
853641
Country of Origin
China
Cross-Reference Numbers
| AUDI | 7M0 951 253 C |
|---|---|
| BOSCH | 0 332 201 107, 0 332 207 302, 0 332 207 307, 0 332 207 310, 0 332 207 321, 0 986 332 004 |
| Borsehung | B17806 |
| CITROËN | 6555.HJ, 96 730 621 80 |
| FEBI BILSTEIN | 107803 |
| FIAT | 9620220980, 9673062180 |
| FISPA | 3.232304 |
| FORD | F5TZ-14N089-B |
| HERTH+BUSS ELPARTS | 75613177 |
| HOFFER | 7232304 |
| HYUNDAI | 95225-38050, 95230-2P040, 95230-2P050 |
| LANCIA | 9620220980 |
| MEAT & DORIA | 73232304 |
| MERCEDES-BENZ | 003 542 02 19, 005 545 10 05, A 003 542 02 19, A 005 545 10 05 |
| MEYLE | 014 830 0005, MEX0060 |
| PEUGEOT | 6555.HJ, 96 730 621 80 |
| SEAT | 7M0 951 253 C |
| SIDAT | 3.232304 |
| SKODA | 7M0 951 253 C |
| SWAG | 30 10 7803 |
| TOPRAN | 115 664 |
| TOYOTA | 90080-87020 |
| VEMO | V15-71-0040 |
| VW | 7M0 951 253 C |
