Meyle

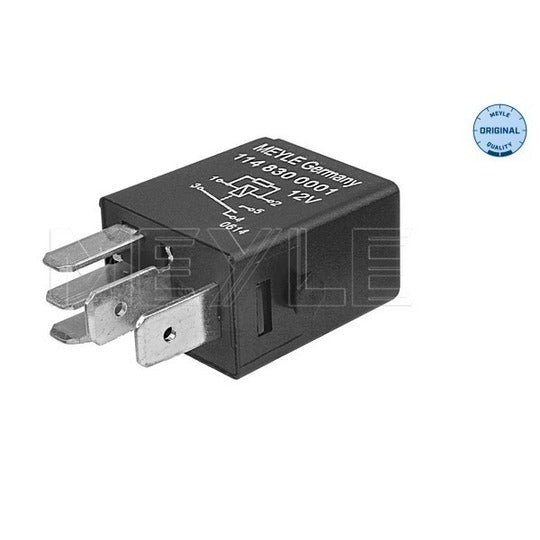

114 830 0001 Multifunctional Relay
SKU / part number
Meyle 114 830 0001 Multifunctional Relay. Part no. 114-830-0001. Check specifications, vehicle fitment and references below.
Specifications
Height
26 | mm
Length
23 | mm
Width
15 | mm
Operating voltage
12 V
Rated current
20 A
Rated current
40 A
Relay function
Terminal 50
Relay function
Terminal 75
Relay function
Heated windscreen
Relay function
Remote Lock, boot-/ loading bay hatch
Relay function
Low Beam
Relay function
Heated rear window
Relay function
Surge protection
Relay function
Normally open contact
Relay function
Daytime Running Light
Relay function
Cigarette Lighter
Relay function
Interior Blower
Relay function
Auxiliary Water Pump
Relay function
Electric booster heater
Relay function
Washer Fluid Pump, windscreen
Relay function
Washer Fluid Pump, headlight cleaning
Relay function
Starter
Relay function
Parking Light
Relay function
Clamp 15
Relay function
Horn
Relay function
Trumpet Horns
Relay function
Engine control unit
Switch Function
Changeover Contact
Temperature range from
-40 °C
Temperature range to
85 °C
Resistor
680 Ohm
Connector type
3x 4,8 mm
Connector type
2x 6,3 mm
Number of pins
5
Trade Numbers
MEX0342
Shipping details
Weight
0.025 Kg
Customs Code
853641
Country of Origin
China
Cross-Reference Numbers
| AUDI | 4H0 951 253 C, 7M0 951 253 C |
|---|---|
| BOSCH | 0 332 201 107, 0 986 332 004 |
| Borsehung | B17811 |
| FEBI BILSTEIN | 107803 |
| FISPA | 3.232304 |
| HERTH+BUSS ELPARTS | 75613177, 75614601 |
| HOFFER | 7232304 |
| JP GROUP | 1199209102 |
| MEAT & DORIA | 73232304 |
| MERCEDES-BENZ | 002 542 12 19, 002 542 28 19, 003 542 02 19, 004 545 29 05, A 002 542 12 19, A 002 542 28 19, A 003 542 02 19, A 004 545 29 05 |
| SEAT | 4H0 951 253 C, 7M0 951 253 C |
| SIDAT | 3.232304 |
| SKODA | 4H0 951 253 C, 7M0 951 253 C |
| SWAG | 30 10 7803 |
| TOPRAN | 115 664 |
| VEMO | V15-71-0040 |
| VW | 4H0 951 253 C, 7M0 951 253 C |
