Nüral

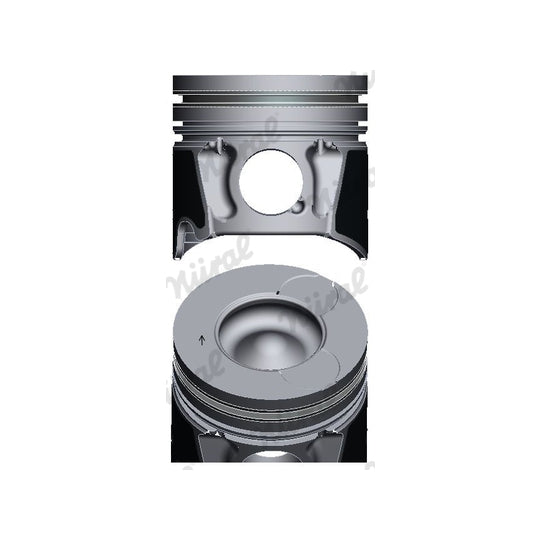

87-114700-40 Piston
SKU / part number
Nüral 87-114700-40 Piston. Part no. 87-114700-40. Check specifications, vehicle fitment and references below.
Specifications
Height
72.7 | mm
Production Number
08570-109
Supplementary Article/Supplementary Info 2
with cooling duct
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
for keystone connecting rod
Recess Depth 1
15.4 mm
Piston Clearance
0.056 mm
Compression Height
46.71 mm
Cylinder Bore
85 mm
Bolt Head Diameter
28 mm
Recess Diameter
44.8 mm
Bolt Length
70 mm
Valve Pocket Depth 2
0.57 mm
Component Number
08-114700-00
Machined
with cut-out for oil jet
Standard Size
STD
Shipping details
Weight
1.028 Kg
Customs Code
840999
Country of Origin
Turkey
Cross-Reference Numbers
| CITROËN/PEUGEOT | 9684649880 |
|---|---|
| KOLBENSCHMIDT | 99 700, 600 |
| MAHLE | 040 37, 00 |
