Nüral

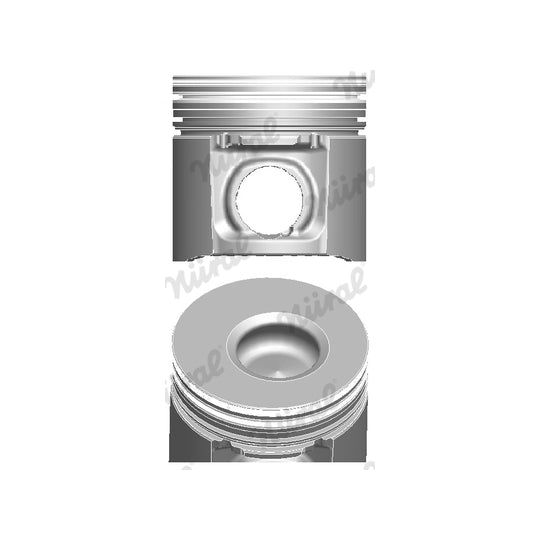

87-122200-10 Piston
SKU / part number
Nüral 87-122200-10 Piston. Part no. 87-122200-10. Check specifications, vehicle fitment and references below.
Specifications
Height
87.6 | mm
Supplementary Article/Supplementary Info 2
with cooling duct
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
for keystone connecting rod
Recess Depth 1
19.4 mm
Piston Clearance
0.09 mm
Compression Height
58.75 mm
Cylinder Bore
94.4 mm
Bolt Head Diameter
32 mm
Recess Diameter
39.25 mm
Bolt Length
72 mm
Component Number
08-122200-00
Machined
with cut-out for oil jet
Standard Size
STD
Shipping details
Weight
1.357 Kg
Customs Code
840999
Country of Origin
Turkey
Cross-Reference Numbers
| AE | A350582 STD |
|---|---|
| FIAT | 2992040, 2996902, 500352812 |
| IVECO | 2992040, 2996902, 500352812 |
| KOLBENSCHMIDT | 94 701 600 |
| MAHLE | 009 89 00 |
