Nüral

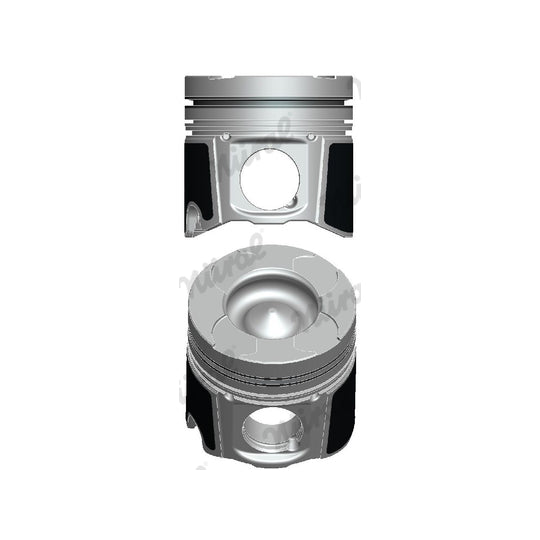

87-137500-30 Piston
SKU / part number
Nüral 87-137500-30 Piston. Part no. 87-137500-30. Check specifications, vehicle fitment and references below.
Specifications
Height
83.1 | mm
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
for keystone connecting rod
Recess Depth 1
16.1 mm
Recess Depth 2
4.9 mm
Piston Clearance
0.12 mm
Compression Height
53.08 mm
Cylinder Bore
89 mm
Bolt Head Diameter
31 mm
Recess Diameter
48 mm
Bolt Length
65 mm
Valve Pocket Depth 1
2 mm
Valve Pocket Depth 2
1.6 mm
Component Number
08-137500-30
Machined
with cut-out for oil jet
Standard Size
STD
Shipping details
Weight
1.175 Kg
Customs Code
840999
Country of Origin
Turkey
Cross-Reference Numbers
| KOLBENSCHMIDT | 40 271, 600 |
|---|---|
| MAHLE | 021 PI, 00121 000 |
| OPEL | 44 18, 621, 622, 93194559, 93194564 |
| RENAULT | 7701478481, 7701478482 |
