Nüral

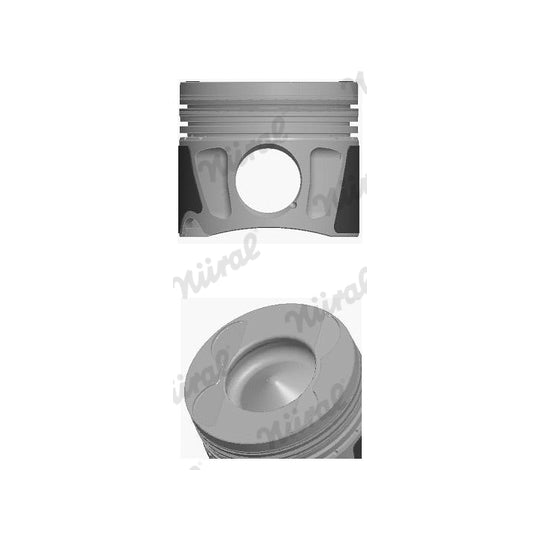

87-427407-00 Piston
SKU / part number
Nüral 87-427407-00 Piston. Part no. 87-427407-00. Check specifications, vehicle fitment and references below.
Specifications
Height
71.7 | mm
Fitting Position
for cylinder 1-3
Production Number
08340F111
Supplementary Article/Supplementary Info 2
with cooling duct
Supplementary Article/Supplementary Info 2
with piston ring carrier
Recess Depth 1
14.65 mm
Oversize
0.5 mm
Compression Height
45.65 mm
Cylinder Bore
83.5 mm
Bolt Head Diameter
30 mm
Recess Diameter
43.4 mm
Bolt Length
65 mm
Valve Pocket Depth 1
1.49 mm
Valve Pocket Depth 2
1.33 mm
Component Number
08-427407-00
Machined
with cut-out for oil jet
Shipping details
Weight
0.929 Kg
Customs Code
840999
Country of Origin
Turkey
Cross-Reference Numbers
| KOLBENSCHMIDT | 40 095, 630 |
|---|
