Nüral

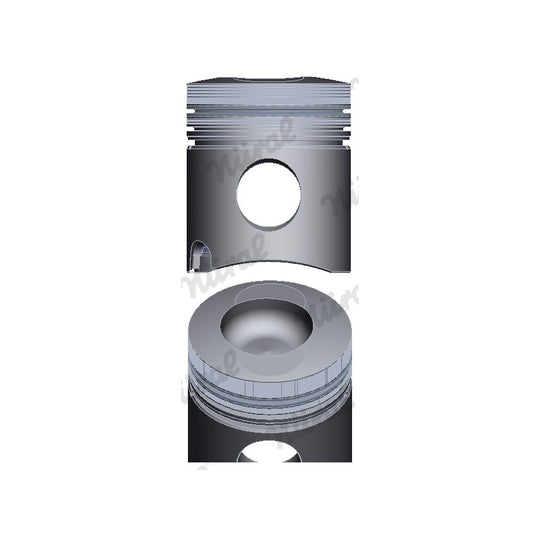

87-740900-00 Piston
SKU / part number
Nüral 87-740900-00 Piston. Part no. 87-740900-00. Check specifications, vehicle fitment and references below.
Specifications
Height
123.6 | mm
Production Number
10234
Recess Depth 1
16.6 mm
Piston Clearance
0.105 mm
Piston Protrusion
5 mm
Compression Height
69.1 mm
Cylinder Bore
102 mm
Bolt Head Diameter
35 mm
Recess Diameter
56.1 mm
Bolt Length
80 mm
Component Number
08-740900-10
Piston Chamber Volume
49.5 cm³
Machined
with cut-out for oil jet
Standard Size
STD
Shipping details
Weight
1.897 Kg
Customs Code
840999
Country of Origin
Germany
Cross-Reference Numbers
| KOLBENSCHMIDT | 99 343, 600 |
|---|
