Nüral

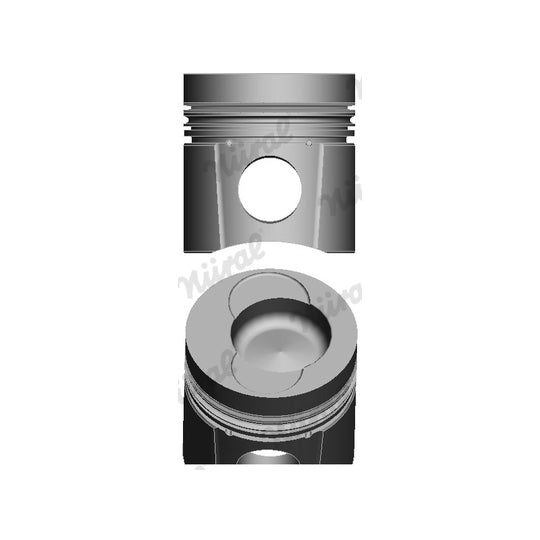

87-285900-40 Piston
SKU / part number
Nüral 87-285900-40 Piston. Part no. 8728590040. Check specifications, vehicle fitment and references below.
Specifications
Height
115.9 | mm
Production Number
10830B
Supplementary Article/Supplementary Info 2
with piston ring carrier
Recess Depth 1
21.35 mm
Piston Clearance
0.113 mm
Compression Height
72.9 mm
Cylinder Bore
108 mm
Bolt Head Diameter
40 mm
Recess Diameter
62.48 mm
Bolt Length
90 mm
Component Number
08-285900-00
Machined
with cut-out for oil jet
Surface
Hard Anodized
Standard Size
STD
Shipping details
Weight
1.965 Kg
Customs Code
840999
Country of Origin
Turkey
Cross-Reference Numbers
| MAN | 51025017656 |
|---|
