Nrf

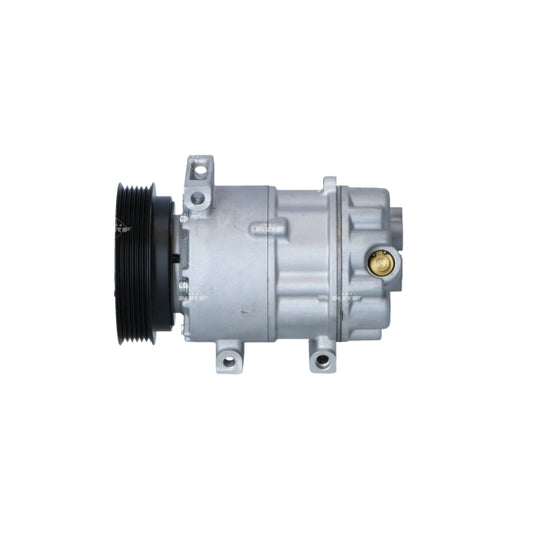

32826 Compressor, air conditioning
SKU / part number
Nrf 32826 Compressor, air conditioning. Part no. 32826. Check specifications, vehicle fitment and references below.
Specifications
Manufacturer Restriction
SANDEN-EQUIVALENT
Pulleys
with V-ribbed belt pulley
Compressor ID
SD7V16C
Voltage
12 V
Compressor Oil
PAG 46
Number of grooves
6
Belt Pulley Ø
119 mm
Oil Fill Quantity
135 ml
Inlet Diameter
20.7 mm
Outlet Diameter
14.3 mm
Cylinder Head ID
VTC air conditioning compressor
Quality
OE-EQUIVALENT
Connector Shape
rectangular
Supplementary Article/Supplementary Info
with gaskets/seals
Guarantee
3 years warranty
Shipping details
Weight
6.667 Kg
Customs Code
841430
Country of Origin
China
OE Numbers
| CITROËN | 1609491380, 1609491480, 6453TA, 6453TC, 6453VC, 6453VE, 6453YW, 6453YX, 6453YY, 6453YZ, 648744, 648745, 648746, 648747, 9655229080, 9659749480, 9672867380, 9672867780, 9686061980, 9686062080, 9800854280, 9800854780 |
|---|---|
| FIAT | 9655229080, 9659749480, 9672867780, 9686061980 |
| LANCIA | 9655229080, 9686061980 |
| PEUGEOT | 1609491380, 6453TA, 6453TC, 6453VC, 6453VE, 6453YW, 6453YX, 6453YY, 6453YZ, 648744, 648745, 648746, 648747, 9655229080, 9659749480, 9672867380, 9672867780, 9686061980, 9686062080, 9800854280, 9800854780 |
Cross-Reference Numbers
| AKS DASIS | 851814N, 851815N |
|---|---|
| AUTO AIR GLOUCESTER | 141270 |
| AVA Clever Choice | CNAK253, CNK253 |
| CITROËN | 1609491380, 1609491480, 6453TA, 6453TC, 6453VC, 6453VE, 6453YW, 6453YX, 6453YY, 6453YZ, 648744, 648745, 648746, 648747, 9655229080, 9659749480, 9672867380, 9672867780, 9686061980, 9686062080, 9800854280, 9800854780 |
| DELPHI | TSP0155957 |
| EACLIMA | 20A1270, 20A1270A |
| FIAT | 9655229080, 9659749480, 9672867780, 9686061980 |
| FRIGAIR | 92020182 |
| HELLA | 8FK351334191, 8FK351334691 |
| LANCIA | 9655229080, 9686061980 |
| LUCAS | ACP672 |
| MAHLE | ACP1343000P, ACP1343000S |
| NISSENS | 89136 |
| NRF | 32826G |
| PEUGEOT | 1609491380, 6453TA, 6453TC, 6453VC, 6453VE, 6453YW, 6453YX, 6453YY, 6453YZ, 648744, 648745, 648746, 648747, 9655229080, 9659749480, 9672867380, 9672867780, 9686061980, 9686062080, 9800854280, 9800854780 |
| SANDEN | 1270, 1803, 1817, 1818, 1848, SD7V16-1270, SD7V16-1803, SD7V16-1817, SD7V16-1848 |
| VALEO | 813322, 813811, 813813 |
| VAN WEZEL | 0900K253, 0900K254 |
| WALKER PRODUCTS | WCP00117 |
