Optimal

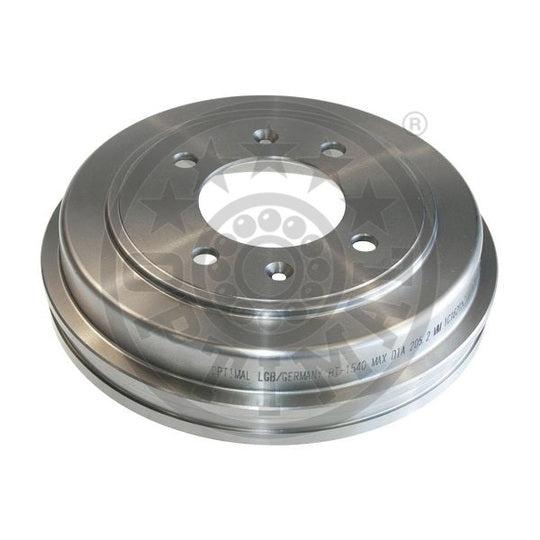

BT-1540 Brake Drum
SKU / part number
Optimal BT-1540 Brake Drum. Part no. BT-1540. Check specifications, vehicle fitment and references below.
Specifications
Centering Diameter
76 | mm
Height
58.8 | mm
Fitting Position
Rear Axle
Outer brake drum diameter
243 mm
Inner brake drum height
45 mm
Bolt Hole Circle Ø
114.3 mm
Bore Diameter
12.5 mm
Drum diameter
203.2 mm
max. brake drum reboring dimension
205.2 mm
Hole Arrangement/Number
4/6
Shipping details
Weight
4.417 Kg
Customs Code
870830
Country of Origin
Germany
OE Numbers
| HYUNDAI | 5841117200 |
|---|
Cross-Reference Numbers
| A.B.S. | 3420-S |
|---|---|
| ABE | C60503ABE |
| ASHIKA | 56-H0-011, 56-H0-011C |
| BLUE PRINT | ADG04712 |
| BORG & BECK | BBR7136 |
| BOSCH | 0 986 477 234 |
| Brake ENGINEERING | DR962270 |
| DELPHI | BF433 |
| FERODO | FDR329274 |
| FTE | 9190026 |
| HELLA | 8DT 355 301-781, 8DT 355 301-881 |
| HELLA PAGID | 8DT 355 301-781 |
| HERTH+BUSS JAKOPARTS | J3400524 |
| HYUNDAI | 5841117200 |
| JAPANPARTS | TA-H11, TA-H11C |
| JAPKO | 56H11, 56H11C |
| JP GROUP | 3563500300 |
| KAVO PARTS | BD-3373 |
| LYNXAUTO | BM-1071 |
| MANDO | MBD050020 |
| MAXGEAR | 19-3693 |
| MEYLE | 37-15 523 0019 |
| NIPPARTS | J3400515 |
| NK | 253414 |
| NPS | H340I10 |
| PAGID | 61352 |
| RIDEX | 123B0006, 123B0181 |
| STARLINE | PB 6571 |
| Stark | SKBDM-0800005, SKBDM-0800180 |
| TEXTAR | 94034900 |
| TRISCAN | 8120 43215, 8120 43215C |
| TRW | DB4225 |
| VALEO | 237055 |
