Zimmermann
20990.110.9 Brake Shoe Set
SKU / part number
Zimmermann 20990.110.9 Brake Shoe Set. Part no. 20990-110-9. Check specifications, vehicle fitment and references below.
Specifications
Width
40 | mm
Fitting Position
Rear Axle
Brake System
VAG
Brake Lining
Standard Size
Mounting Type
Pre-assembled
Supplementary Article/Supplementary Info
with wheel brake cylinder
Inner brake drum diameter
230 mm
Piston Diameter
21 mm
Supplementary Article/Supplementary Info

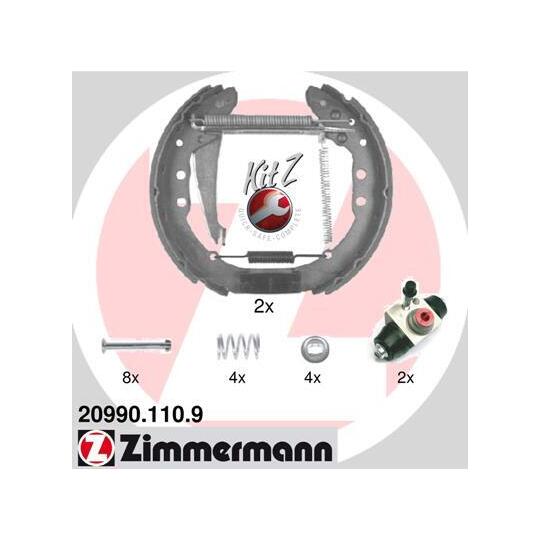

Photo corresponds to scope of supply
Test Mark
ECE R90 APPROVED
Shipping details
Weight
2.497 Kg
Customs Code
870830
Country of Origin
Germany
Cross-Reference Numbers
| ATE | 03.0137-0264.2 |
|---|---|
| BOSCH | 0 204 114 634 |
| BREMBO | S 85 514 |
| FERODO | FSB409 |
| FORD | 8AO609525B, 8AO6095526B, 8AO6095527B, 8AO6095528B |
| HELLA | 8DB 355 001-341, 8DB 355 003-561, 8DB 355 005-201 |
| ICER | 79KT0004 C |
| JURID | 362220J |
| RAICAM | RA26850 |
| REMSA | 4048.00, 4397.00 |
| TEXTAR | 83044402, 84044400, 91044400 |
| TRW | GS8544 |
| VAG | 357 609 525 C, 357 609 526 C, 357 609 527 E, 357 609 528 E, 357 698 525 C, 357 698 525 CT, 357 698 525 CV, 357 698 525 CX, 431 609 525, 431 609 526, 431 609 527 E, 431 609 528 E, 431 698 525 X, 443 609 525 A, 443 609 526 A, 443 609 527 A, 443 609 528 A, 443 698 525, 443 698 525 AX, 443 698 525 BV, 443 698 525 BX, 443 698 525 CX, 8AO 609 525 B, 8AO 609 526 B, 8AO 609 527 B, 8AO 609 528 B |
| ZIMMERMANN | 10990.101.1 |
| fri.tech. | 1016.020, 1016.021 |
